BRUSH ROLL,RUBBER (POLYURETHANE) ROLL,OPTICAL FLUID MEMBRANE THICKNESS MEASUREMENT TOOL of TOHO YOGYO

Other Products

1、BRUSH ROLL

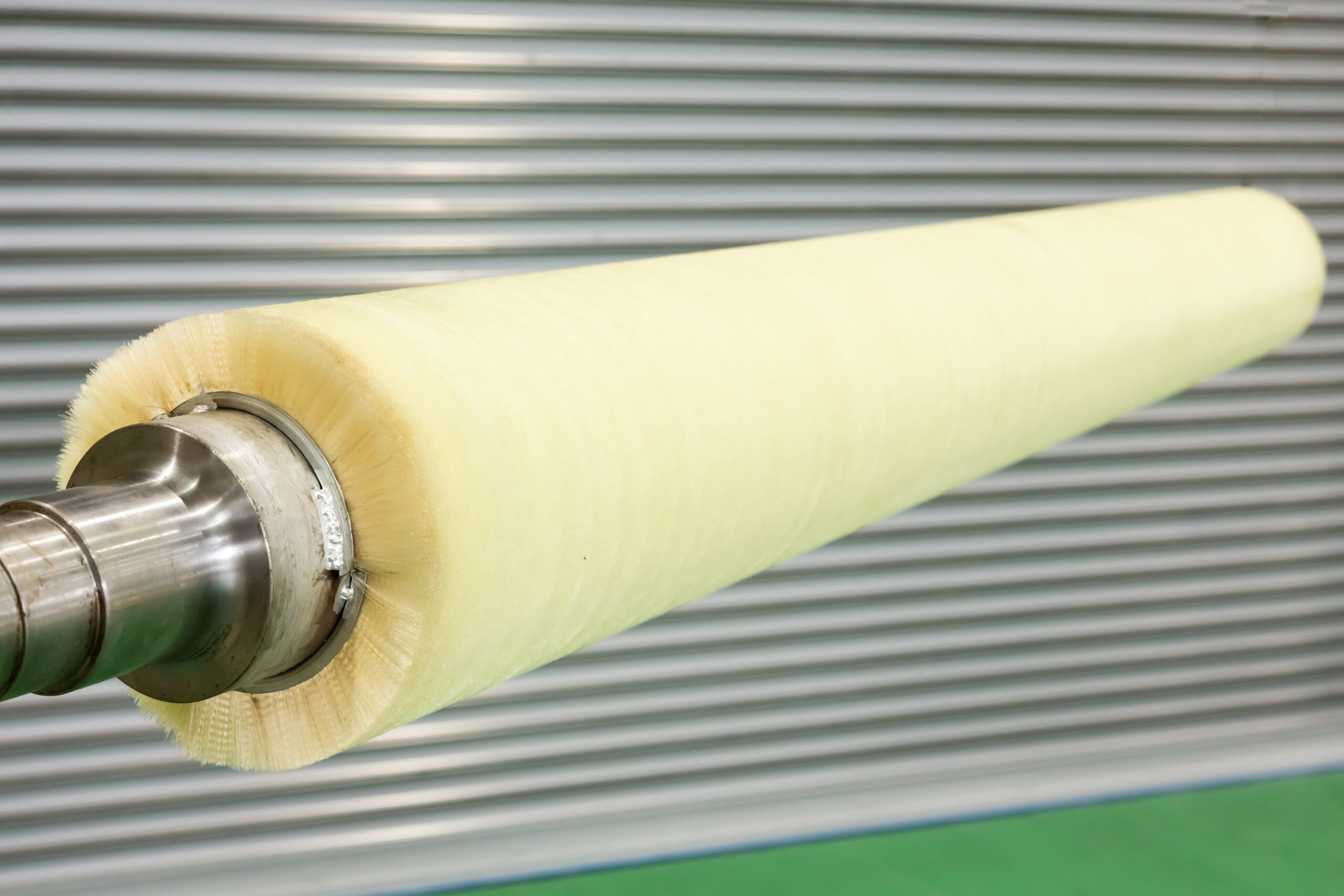

BRUSH ROLL

Brush rolls are made by mounting channel strip brushes on the shafts,
and used for cleaning and descaling the steel plates.

Specification

Specification Item
Wrapping method Full / Pitch
Wrapping pattern Single / Double
Brush material 66 Nylon / Polypropylene
Bristle diameter φ0.3 / φ0.5
Filament form Straight / Crimped
Metal channel size #8 / #10

※Please contact us for more options.

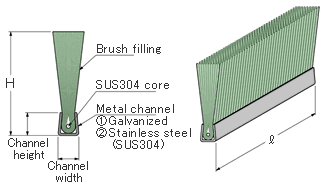

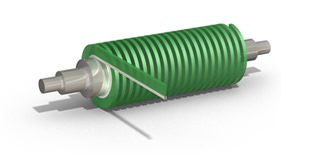

Wrapping of BRUSH ROLLBrushes of BRUSH ROLL

Other specifications

  • Conductive fibre — Anti Static Brush
  • Choice of color
  • Wrapping direction — Right-spiral available (Our standard is left spiral)
  • Cartridge type

2、RUBBER (POLYURETHANE) ROLL

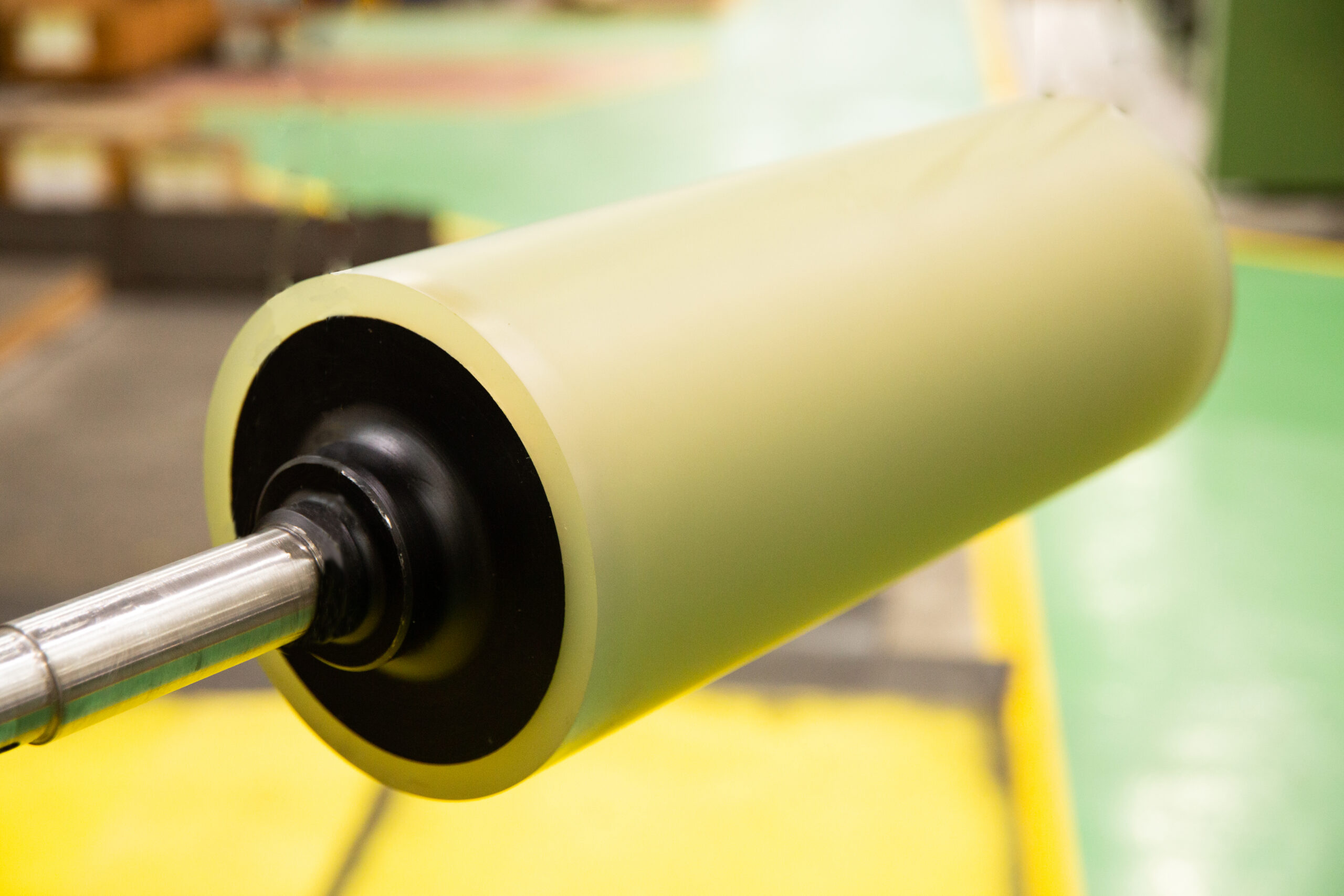

RUBBER (POLYURETHANE) ROLL

Rubber(Polyurethane)rolls are made by covering rubber(polyurethane)
on the shafts, used for controlling and feeding steel plates.

Specification

Specification Item Remark
Material Standard / Abrasion resistance
Surface finishes Groove / Crepe ※Available on request

3、OPTICAL FLUID MEMBRANE THICKNESS MEASUREMENT TOOL

OPTICAL FLUID MEMBRANE THICKNESS MEASUREMENT TOOL

Optical fluid membrane thickness measurement tool is an equipment enable to
easily measure the thickness of oil membrane on the steel plates and others.

Applications

  • Measurement of oil residue on steel plates
  • Measurement of other fluid membrane thicknesses

Specification

  • Contact-type
  • Measurement range: 0.3g/m2 – 4g/m2
  • Material: BK7
  • Weight: about 50g

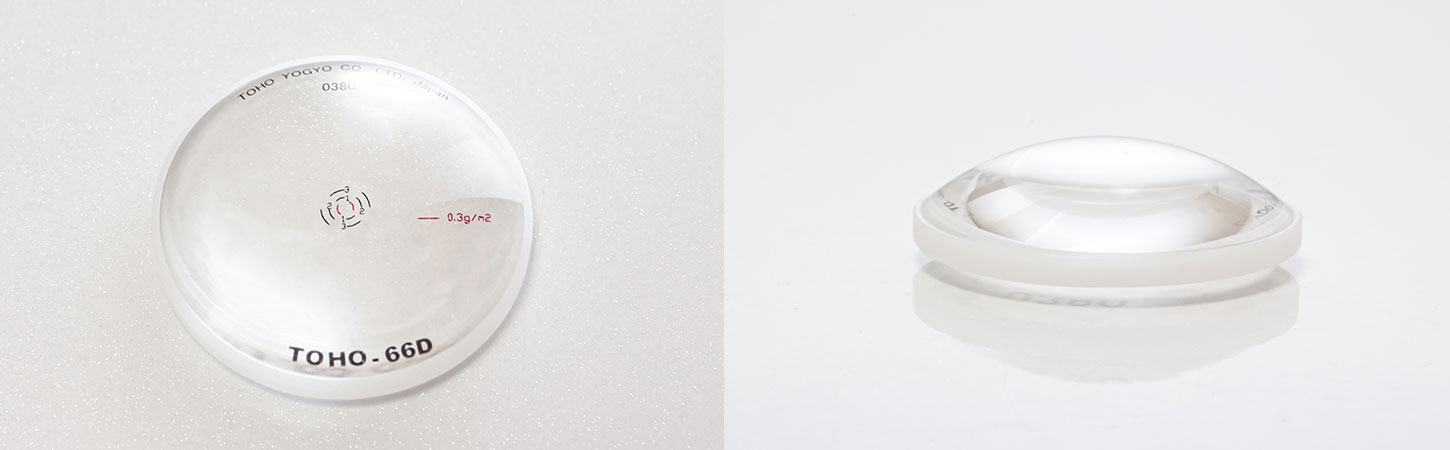

Measure residual oil by OPTICAL FLUID MEMBRANE THICKNESS MEASUREMENT TOOL
